Train Locomotive Part HT15-G Photoelectric Speed Sensor

  • Train Locomotive Part HT15-G Photoelectric Speed Sensor
Place of Origin China
Nom de marque HTR
Model Number HT15-G
Minimum Order Quantity 10pcs
Prix Négociable
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Contactez-moi pour des échantillons gratuits et des coupons.

Quel est l'app?:0086 18588475571

Nous avons parlé.: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Altitude ≤ 2500 m Operating Temperature -40°C to +70°C
Relative Humidity ≤ 95% Protection Rating IP66
Load Resistance ≥ 3 kΩ Insulation Resistance ≥ 50 MΩ @ 500VDC
Dielectric Strength AC1500V / 50Hz / 60s Shaft Extension Length 78 mm, 95 mm, 110 mm, and 120 mm
Connector Type JL5-14TJ, JL5-19TK
Mettre en évidence

Train Locomotive Part Photoelectric Speed Sensor

,

HT15-G Photoelectric Speed Sensor

,

Locomotive Part Photoelectric Speed Sensor
Laisser un message
Description de produit

Products Description

The HT15-G Photoelectric Speed Sensor is an advanced rotational speed detection device  based on the photoelectric effect. It features a slotless design to eliminate issues caused by light-slot blockage and employs area light source technology for enhanced anti- interference performance. With a dual-row bearing structure, the sensor offers improved bearing reliability, while  multiple sealing mechanisms ensure a high IP protection rating. It supports flexible channel configuration with electrical isolation between channels, and offers a variety of pulse count options to meet different application needs. Designed for contact-based speed measurement, the HT15-G provides multiple connection interfaces, and its use of low-temperature-resistant rubber tubing makes it ideal for  operation in extremely cold environments.


Specification


Item

Specification

Altitude

≤ 2500 m

Operating Temperature

-40°C to +70°C

Relative Humidity

≤ 95% (based on average monthly minimum temperature of 25°C)

Shock and Vibration

Complies with GB/T 21563-2008, Class P3 axle mounting requirements

Protection Rating

IP66

Power Supply Voltage

DC15V or DC24V nominal; operating range: DC12V to DC30V

Speed Measurement Range

0 rpm to 3000 rpm

Number of Output Channels

2 / 3 / 4 / 6 (optional)

Pulses per Revolution

200 or 96

Output Waveform

Square wave; rise/fall time ≤ 10 μs

Load Resistance

≥ 3 kΩ

High-level Output Voltage

≥ 0.8 × Vcc (Vcc = power supply voltage)

Low-level Output Voltage

≤ 2V

Duty Cycle

50% ±10%

Phase Difference

90° ±30° (refer to diagram 1 for direction definition)

Current Consumption

< 50 mA

Insulation Resistance

≥ 50 MΩ @ 500VDC

Dielectric Strength

AC1500V / 50Hz / 60s

Enhanced Dielectric Strength

Special series withstand up to AC5000V / 50Hz / 60s

EMC Compliance

Complies with GB/T 24338.4-2009

Protection Functions

Power polarity protection, output short-circuit protection

Housing Material

High-strength cast aluminum alloy

Shaft Extension Length

78 mm, 95 mm, 110 mm, and 120 mm (customizable based on user requirements)

Dimensions

Standard cable length is 1400 mm (custom lengths available)

Connector Type

JL5-14TJ, JL5-19TK

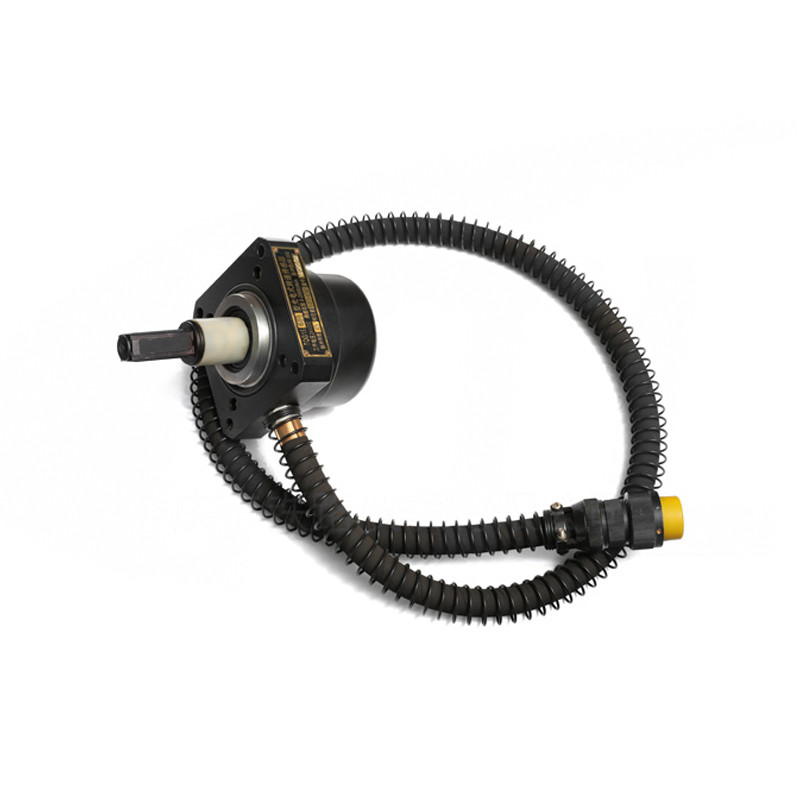

Train Locomotive Part HT15-G Photoelectric Speed Sensor 0
